Green mesh cantilever sliding gate at a commercial site

Industrial sliding gates

WSP cantilever sliding gates

Safety, efficient operation and durability, for industrial, commercial and transport entrances from 4 to 12 metres.

Request A Quote Call 01371 831731

Reliable, efficient operation, made to suit your entrance. The cantilever structure spans the opening on roller carriages beside it, so there's nothing in the clear passage: no ground track to fill with gravel, mud or ice, and nothing for vehicles to damage.

  • Proven in all conditions

    Hot dip galvanised and powder coated as standard. Because the gate travels above the ground, it runs smoothly on unpaved and sloping drives, and in snow.

  • Safety as standard

    Every automated WSP gate runs on a standard 230V single phase supply, with a heavy-duty motor rated for frequent use, dual-height photocells and active safety edges. WSP 95 and WSP 130 can also run off-grid on solar power.

  • Tailored to your site

    Left- or right-handed, single or double-leaf, in a wide choice of RAL colours or galvanised only, with optional anti-climb spikes.

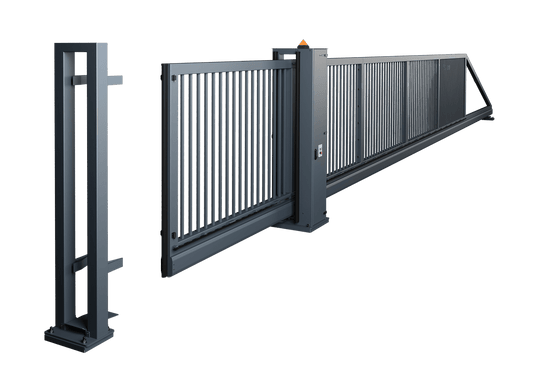

WSP 200 extra-wide automated cantilever sliding gate

Extra wide

WSP 200 gate

For large vehicle entrances, industrial estates and compounds.

  • Clear opening: 8 to 12 metres
  • Height: 1.3 to 2.4 metres
  • Operation: Automated, 230V single phase
  • Best for: HGV entrances and large compounds
View WSP 200
WSP 130 automated cantilever sliding gate in anthracite grey

Heavy duty

WSP 130 gate

For high-traffic industrial, transport and logistics entrances where the gate opens many times a day. Infilled with welded 868 twin wire mesh, so it matches our security mesh fencing.

  • Clear opening: 6 to 9 metres
  • Operation: Automated, 230V single phase
  • Solar compatible: Yes, runs off-grid with EstateGuard Solar
  • Best for: High-traffic industrial and transport sites
View WSP 130

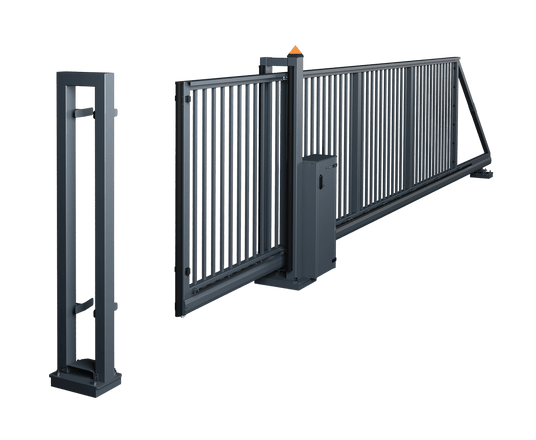

WSP 95 automated cantilever sliding gate

Commercial

WSP 95 gate

For business units, yards, depots and commercial car parks. The manual WSP 95 suits secondary entrances and compounds.

  • Clear opening: 4 to 6 metres
  • Height: 1.2 to 2.1 metres
  • Operation: Automated (230V single phase) or manual
  • Solar compatible: Yes, runs off-grid with EstateGuard Solar
View WSP 95

Functionality and safety

  • Trackless cantilever design

    Nothing across the opening to clog, freeze or be damaged by HGVs.

  • Single phase power

    All automated WSP gates run on 230V single phase, so no three-phase supply is needed. Heavy-duty motors are rated for frequent use.

  • Dual-height photocells

    If something enters the opening, the beam is broken and the gate stops.

  • Active safety edges

    Stop the gate if the leaf meets an obstacle.

  • Anti-climb spikes

    Optional spikes along the top edge of the leaf.

  • Left, right or double-leaf

    Configured to suit the run-back space on site.

  • Access control

    Phone app, GSM call-to-open, remotes, keypads, intercoms and vehicle detectors.

    Access control

  • Groundworks drawings

    Drawings and templates supplied on order, so your groundworker knows exactly what to build.

Planning your gate in 5 steps

  • 1. Measure the opening

    Clear width between the posts or fence lines.

  • 2. Check the run-back

    Clear, level space alongside the opening, roughly 1.5× the opening width. A bi-parting pair halves it.

  • 3. Plan foundations

    A reinforced base along the run-back plus a receiving-post base and duct. We supply drawings.

  • 4. Sort out power

    All WSP gates are single phase: a 6 A supply with a fused spur. Or run a WSP 95 or WSP 130 off-grid with EstateGuard Solar.

    EstateGuard Solar

  • 5. Choose access

    App, GSM call, smart remotes, keypads, intercoms and free-exit detectors.

    Access control

Galvanised + powder coated

Colour & finish

WSP gates are hot dip galvanised and powder coated as standard, which gives a long service life whatever the weather. Choose from a wide range of RAL colours, or plain galvanised if you prefer.

Request a gate quote

Frequently asked questions

Which WSP gate do I need?

It mainly depends on the opening width and how busy the entrance is. WSP 95 covers 4 to 6 m, WSP 130 is the heavy-duty choice for 6 to 9 m and frequent use, and WSP 200 covers 8 to 12 m. Send us your measurements and we'll recommend the right one.

Can a cantilever gate be manual?

Yes. The WSP 95 is available as a manual gate. A purpose-built manual gate will be better than a manual gate designed to be automated.

Can a WSP gate run on solar power?

Yes. WSP 95 and WSP 130 gates are compatible with EstateGuard Solar, so they can be automated where there's no mains power at the entrance.

Do I need a three-phase supply?

No. All our automated gates, including the WSP 200, run on a standard 230V single phase supply: a 6 A fused spur at the motor position.

What foundations are needed?

A reinforced concrete foundation along the run-back, a smaller base for the receiving post, and a duct between them. Drawings and templates come with every order.

Do you supply installers?

Yes. We supply trade installers across the UK with gates, automation, access control and technical support from people who fit these gates every week.

Complete the entrance

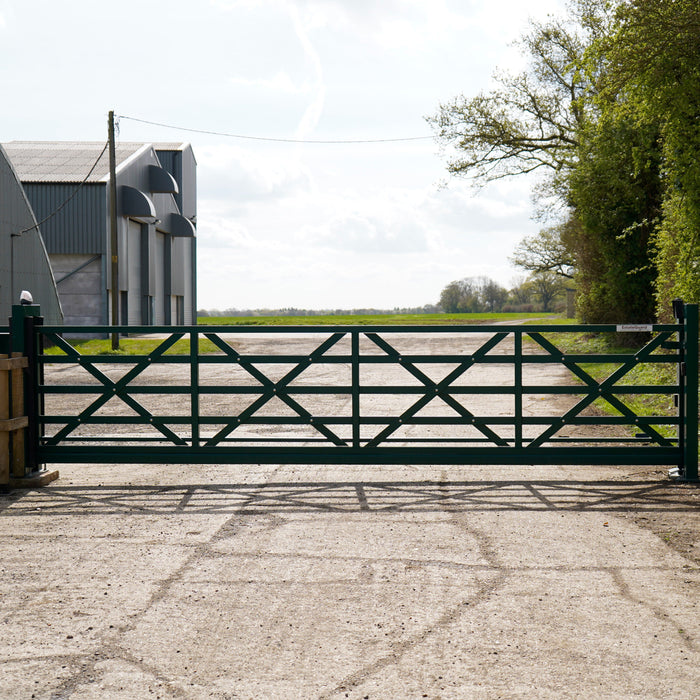

  • EstateGuard EG95 five-bar style cantilever sliding gate
