Automated Operation
The gates can be either operated as manual gates, or supplied with automation. Contact us for automation and installation options.
-
Galvanised & Powder Coated
Hot dip galvanised, then polyester powder coated in any standard RAL colour. Galvanised finish is also available.
-
Complete & CE marked
Posts, hinges, lock and handles come with every gate. CE marked to EN 13241-1.
Pedestrian access

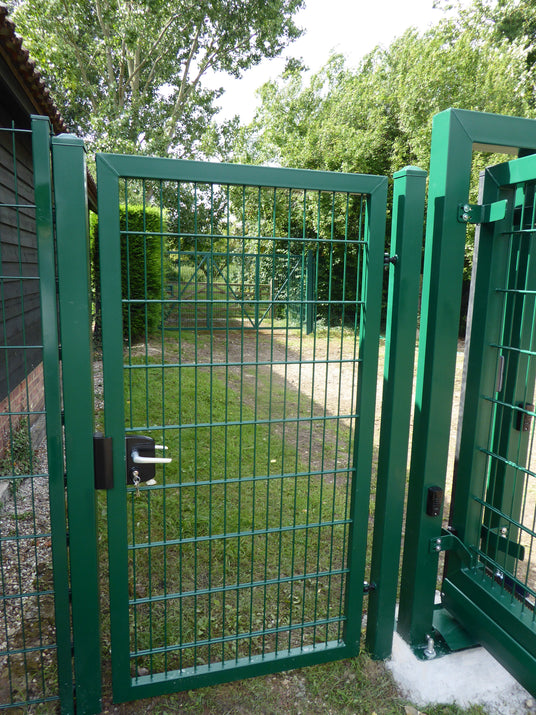

Single Leaf Pedestrian Gates
A personnel gate in the fence line for staff, visitors and maintenance access.
- Widths (between posts): 1.0 m or 1.2 m, giving a clear opening of 895 mm or 1,095 mm
- Heights: 1.3, 1.6, 1.8 or 2.1 m
- Opening: Inwards, left or right hand
- Supplied with: 80 × 80 mm posts with caps, 2 hinges, lock, lock strike and handles
- Best for: Staff entrances, compounds, plant areas, schools and sports grounds
Vehicle access
Double Leaf Mesh Gates
Twin mesh gates that meet in the middle, for vehicle, plant and emergency access.
- Widths (between posts): Available up to 10 metres
- Heights: Available up to 2.5 metres
- Operation: Available as manual, supplied prepared for automation, or supplied with automated. Installation is also available.
- Supplied with: 80 × 80 mm posts with caps, 4 hinges, lock and handles, drop bolt and ground socket, and a catch to hold the leaf open
- Best for: Secondary vehicle entrances, yards, schools and sports sites
Wider or busier entrances

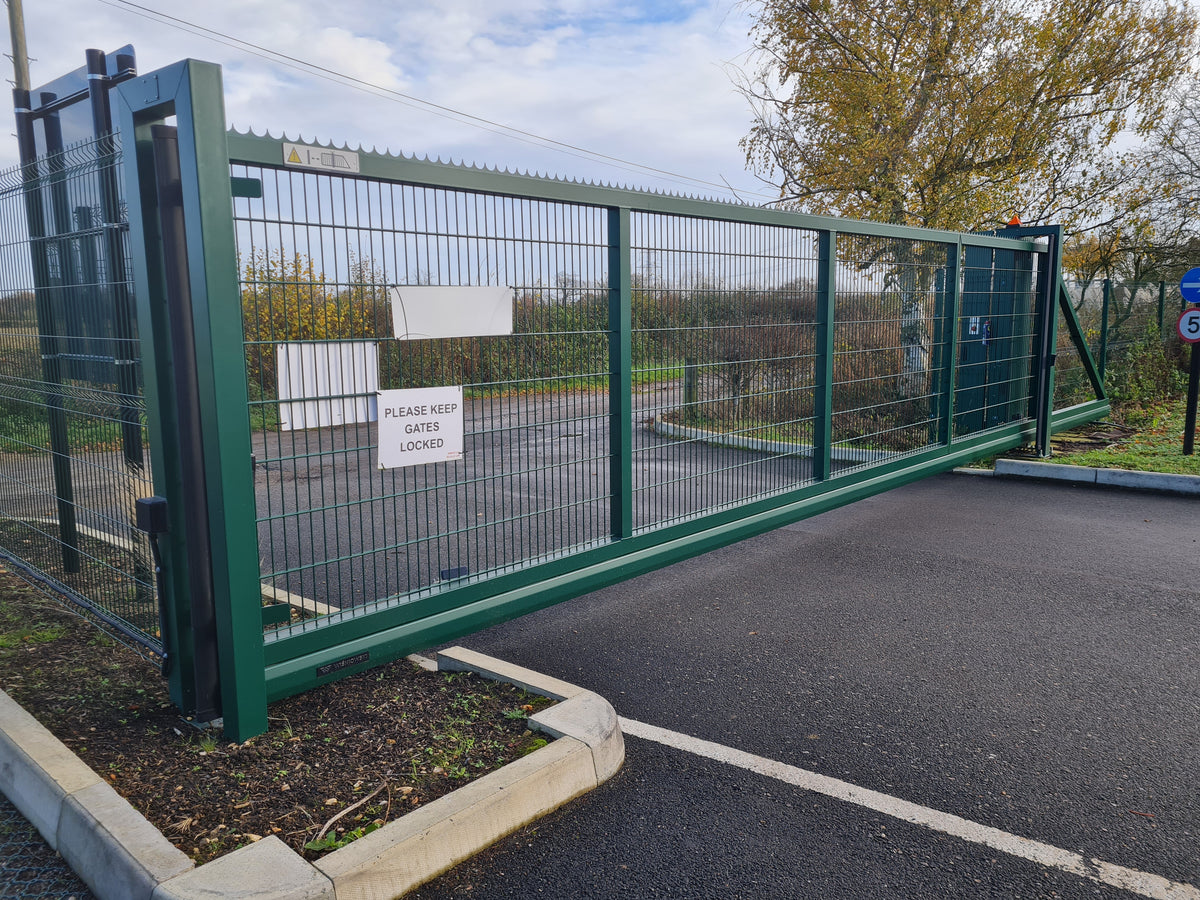

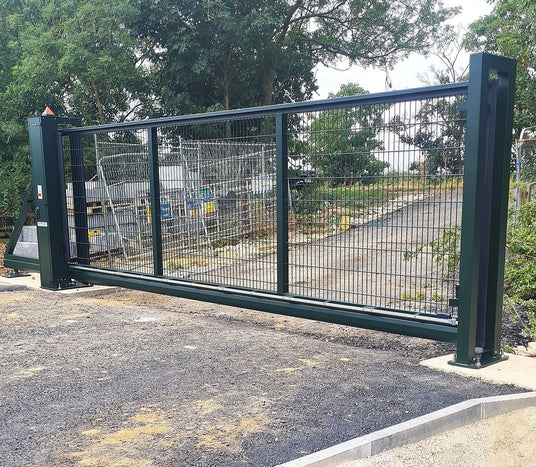

Mesh Infill Cantilever Sliding Gates
Every WSP cantilever sliding gate can be infilled with mesh to match your fence, so a sliding vehicle gate and a mesh pedestrian gate beside it look like one system. No track across the opening and no swing room needed.
- 868 Twin Wire Mesh: Welded into the frame. Our heaviest mesh, matching 868 Security Mesh Fencing
- 358 Security Mesh: Tight 76.2 × 12.7 mm aperture that's very hard to climb or cut, matching 358 fencing
- V-Mesh: Matching V-Mesh Fencing
- Openings: 4 to 12 metres, automated or manual
Request A Quote
Frequently asked questions
What sizes are available?
What sizes are available?
Single gates are 1.0 or 1.2 m between posts, in heights of 1.23, 1.53, 1.73 and 2.03 m. Double gates are 3.0, 3.5 or 4.0 m between posts, in the same heights (1.73 and 2.03 m on 3.5 and 4.0 m only). For other sizes, send us the opening and we'll quote.
My fence is taller than 2 m. What gate goes with it?
My fence is taller than 2 m. What gate goes with it?
Standard swing gate leaves go up to 2.03 m. For a taller fence line, a WSP sliding gate with matching mesh infill goes up to 2.4 m. Tell us your fence height and we'll advise.
Which way do the gates open?
Which way do the gates open?
Inwards, into the site. Single gates can be hung left or right hand. Make sure the area inside the gate is clear for the leaves to swing.
Are the posts included?
Are the posts included?
Yes. Every gate comes with 80 × 80 mm posts and caps, hinges, a lock and handles. Double gates also get a drop bolt, a ground socket and a catch to hold the leaf open.
Can mesh gates be automated?
Can mesh gates be automated?
For vehicle entrances, a WSP cantilever sliding gate with mesh infill is the better choice. It's built to be automated, needs no swing room and runs on 230V single phase or solar.
Can you install it?
Can you install it?
Yes. Our own SMAS Worksafe accredited team installs across the UK, or we can supply only for your installer.
Do you supply installers?
Do you supply installers?
Yes. We supply trade installers across the UK. Open a trade account for trade pricing and account terms.
Complete the entrance
-
Matching mesh fencing
Security Mesh Fencing and V-Mesh Fencing to secure the rest of the perimeter.
-
Cantilever sliding gates
Trackless automated gates for main vehicle entrances, 4 to 12 metres.
-
