EstateGuard EG95 Cantilever Sliding Gate

Request A Quote

Or call 01371 831731

Key features

  • No track across the opening
  • Hot dip galvanised and powder coated
  • 230V single phase or off-grid solar
  • Open by app, phone or remote
  • Groundworks drawings supplied
  • 2-year warranty

An automated cantilever sliding gate with the look of a traditional five-bar field gate. The EstateGuard EG95 is built for farm yards, estates, equestrian and conservation sites, where you need proper security and automation without an industrial gate spoiling the setting.

Available in four clear openings: 4.5 m, 5 m, 5.5 m and 6 m, all 1.3 m high. Choose your size above and request a quote.

Key features

  • Five-bar style design that blends into hedgerows and rural surroundings
  • Trackless cantilever operation: nothing across the entrance for mud, gravel or machinery to clog or damage
  • Hot dip galvanised and powder coated as standard, for a finish built for the environment it's installed in
  • Suits sloping drives and entrances with no room for a gate to swing
  • Pairs with GSM/4G access control for app, phone and remote opening
  • Can run off-grid with EstateGuard Solar

Specification

Clear opening 4.5 m, 5 m, 5.5 m or 6 m
Height 1.3 m
Style Five-bar
Operation Automated cantilever sliding
Finish Hot dip galvanised + powder coated
Power 6 A single phase with fused spur, or off-grid solar
Warranty 2 years

Groundworks

The foundation is a large concrete block on the motor side (minimum 2m³ of concrete) and a smaller block for the latching post, linked by a duct. We supply groundworks drawings and templates on order, and our groundworks guide is available on request.

Why buy from us?

We've specialised in rural security for over 20 years and handle everything from site survey to installation with our own SMAS Worksafe accredited team. Trade installers get full technical support. Explore the EstateGuard range · EstateGuard swing gates · Book a site survey

Recent installations

Gates we've supplied and fitted with our own team.

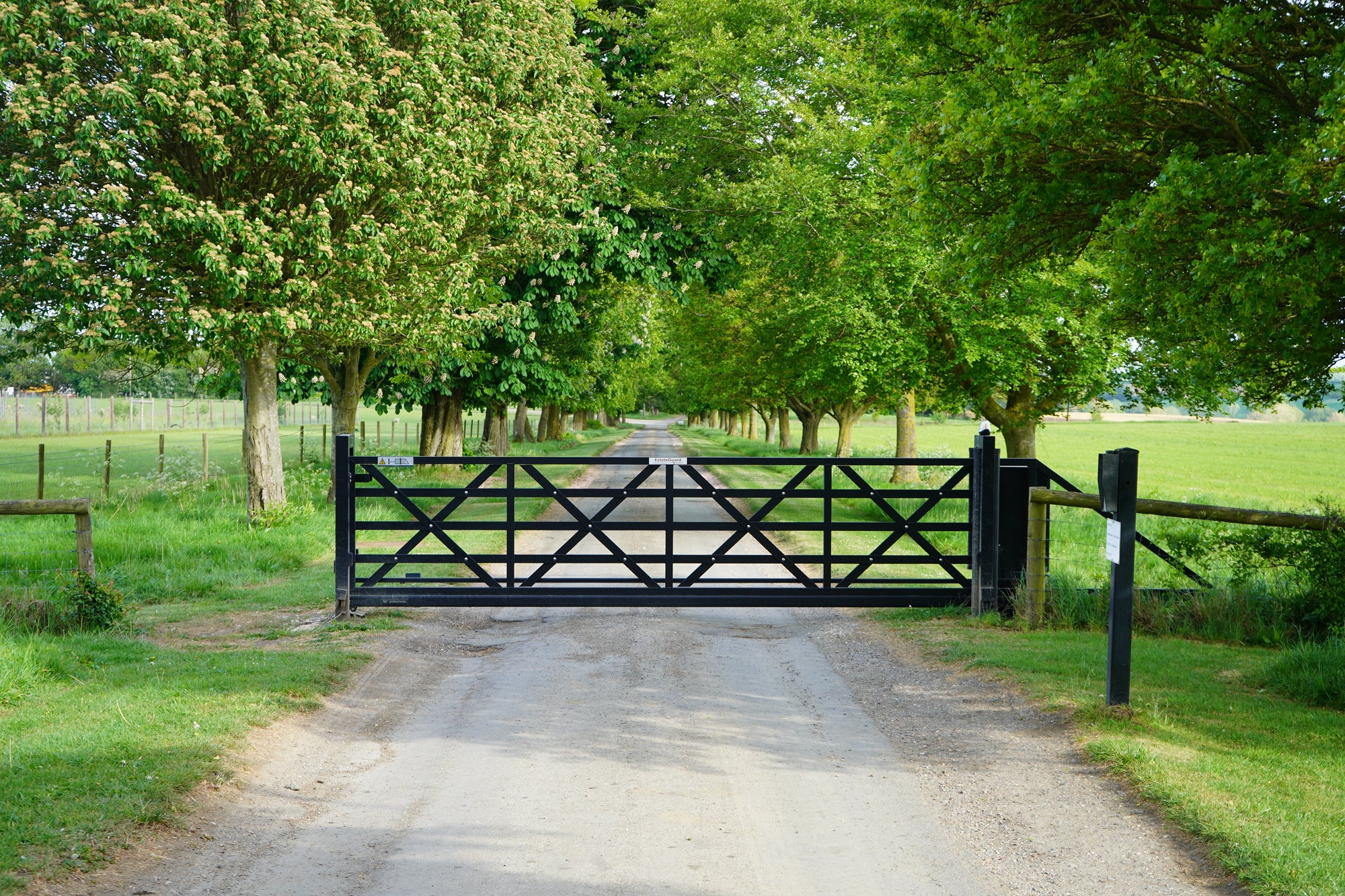

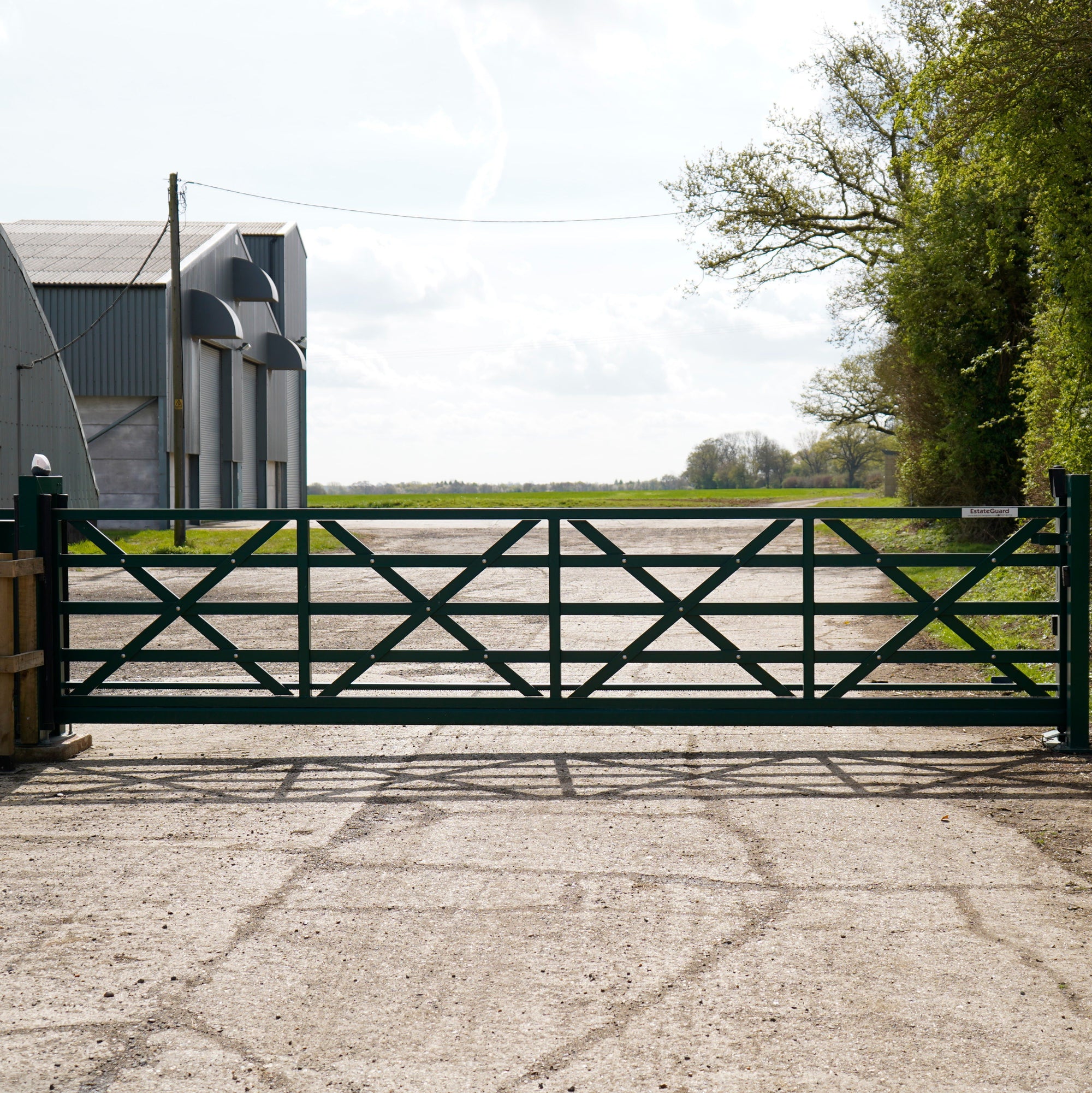

EstateGuard cantilever gate on a rural estate EstateGuard cantilever gate on a rural estate Five-bar style gate across a tree-lined track Five-bar style gate across a tree-lined track Automated entrance in open countryside Automated entrance in open countryside Black sliding gate at a rural site entrance Black sliding gate at a rural site entrance
Request A Quote

From enquiry to installed gate

  • 1. Tell us about your entrance

    Use the quote form or call us. A photo helps.

  • 2. Free site survey

    We measure up, check power and ground, and agree how people will get in.

  • 3. Fixed quote

    A written quote and groundworks drawing. No surprises on the day.

  • 4. Made to measure

    Built to your exact sizes, around 8–9 weeks from order.

  • 5. We fit it

    Our own SMAS Worksafe team installs and tests it, usually in 1–2 days.

  • 6. We look after it

    2-year warranty, with an optional yearly service contract.
