656 Twin Wire Welded Mesh Fencing Bay
Colour: RAL 6005 Moss Green
Note: the plastic panel hooks on Clip and Clamp Bar posts only come in RAL 6005, 7016, 7040 or 9005, so they won't be an exact match for this colour.
Price per metre: ex VAT ( inc VAT)
How much fencing do I need?
Enter your total fence length and we'll set the number of bays for you.
Additional posts
Every bay already includes 1 panel, 1 post and fixings. Only add posts here for the ends of a run or for corners.
| Bays (panel + post + fixings) | |
|---|---|
| Price per bay | |
| Bays cost | |
| End posts | |
| Corner posts | |
| Total ex VAT | |
| VAT (20%) | |
| Total inc VAT |
The quantity below has been set to bays.
656 Twin Wire Welded Mesh Fencing Bay - Clip / 1830 MM / Dig In is backordered and will ship as soon as it is back in stock.
Pickup available at Wellington Security Products
Usually ready in 2-4 days
Larger project or need it installed? Send us your measurements or site plan and we'll quote.
656 Twin Wire Welded Mesh Fencing Bay
656 Twin Wire Welded Mesh Fencing Bay - Clip / 1830 MM / Dig In is backordered and will ship as soon as it is back in stock.
Complete the fence line
Matching mesh gates
Add a gate in the same mesh and colour as your fence.
- Single gates: 1.0 or 1.2 m wide, for people
- Double gates: 3.0 to 4.0 m wide, for vehicles
- Sliding gates: WSP cantilever gates with mesh infill, 4 to 12 m
Posts, hinges, lock and handles included. Tell us what you've ordered and we'll quote the gate to match.

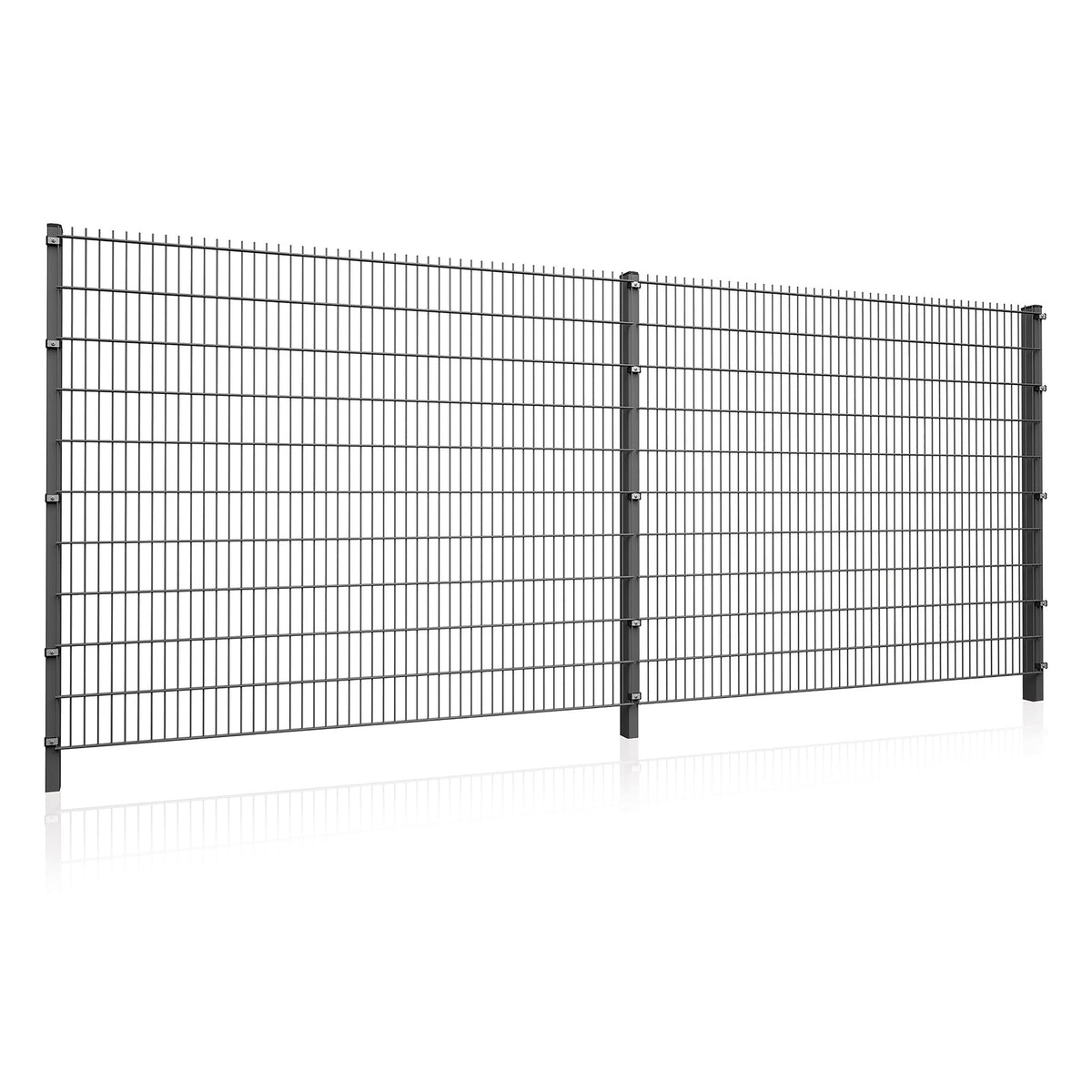

A complete 656 twin wire welded mesh fencing bay: one panel, one post and the fixings to join them. Flat, rigid and hard to climb, 656 twin wire welded mesh suits factories, warehouses and storage yards as well as schools, parks, playgrounds, public buildings and residential boundaries.
Key features
- 656 twin wire construction: double 6 mm horizontal wires clamp each 5 mm vertical wire, giving a flat panel with high rigidity and strength
- Narrow 50 × 200 mm aperture: no easy footholds
- Corrosion protection: welded from raw wire, then galvanised and polyester powder coated. The welding process gives reliable welds and removes likely corrosion points
- 10-year anti-corrosion guarantee on coated panels
- Your choice of fixing type: Clip or Clamp Bar (see below)
- Part of a complete system: matches our sliding gates, mesh gates and pedestrian gates
Choosing a fixing type
| Clip | 60 × 40 mm post with a plastic cap and factory-fitted hooks that the panel sits on. The panel is then secured with an M8 × 60 mm stainless steel screw and a stainless clamping plate. Quick to install, and corner posts are available. |
|---|---|
| Clamp Bar | 60 × 40 mm post with an extended cap and a plastic hook for every row of horizontal wires, locked in with M8 × 60 mm stainless screws, washers and a 40 × 5 mm flat bar that runs the height of the post. The most secure fixing, and the panels are held along their full height. |
Specification
| Panel | 656 twin wire welded mesh, flat, no embossing |
|---|---|
| Wire diameter | 6 mm double horizontal, 5 mm single vertical (tolerance ±0.5 mm) |
| Aperture | 50 × 200 mm |
| Panel width | 2500 mm (51 vertical bars) |
| Panel heights | 1830, 2030, 2230, 2430 mm |
| Posts | 60 × 40 × 1.5 mm steel section (60 × 40 × 2 mm on 3200 mm posts), galvanised and polyester coated |
| Colour | RAL 6005 Moss Green, RAL 9005 Jet Black, RAL 7016 Anthracite Grey, RAL 7030 Stone Grey, RAL 7040 Window Grey, RAL 5010 Gentian Blue, RAL 8017 Chocolate Brown, RAL 9016 Traffic White, or hot-dip galvanised (no powder coat) |
| Standards | Panels made to PN-EN 10223-7. Hot-dip galvanised to EN ISO 1461 or electrogalvanised to PN EN ISO 2081. Polyester coated to EN 10244-2 |
| Price is per | Bay (1 panel + 1 post + fixings) |
Panel and post sizes
| Panel height | Finished fence height | Post length |
|---|---|---|
| 1830 mm | approx. 1900 mm | 2400 mm |
| 2030 mm | approx. 2100 mm | 2600 mm |
| 2230 mm | approx. 2300 mm | 3000 mm |
| 2430 mm | approx. 2500 mm | 3200 mm |
Posts can be concreted into the ground or bolted to a concrete foundation using base plates. Panels can go on flat or sloping ground, either straight above ground level or over a concrete gravel board.
How much do I need?
Use the calculator on this page: enter your fence length to see how many bays you need. Add one extra post to finish the run, plus extras for corners. Send us a site plan for a full materials schedule.
