868 Heavy Duty Twin Wire Welded Mesh Fencing Bay
Colour: RAL 6005 Moss Green
Note: the plastic panel hooks on Clip and Clamp Bar posts only come in RAL 6005, 7016, 7040 or 9005, so they won't be an exact match for this colour.
Price per metre: ex VAT ( inc VAT)
How much fencing do I need?
Enter your total fence length and we'll set the number of bays for you.
Additional posts
Every bay already includes 1 panel, 1 post and fixings. Only add posts here for the ends of a run or for corners.
| Bays (panel + post + fixings) | |
|---|---|
| Price per bay | |
| Bays cost | |
| End posts | |
| Corner posts | |
| Total ex VAT | |
| VAT (20%) | |
| Total inc VAT |
The quantity below has been set to bays.
868 Heavy Duty Twin Wire Welded Mesh Fencing Bay - Clip / 1830 MM / Dig In is backordered and will ship as soon as it is back in stock.
Pickup available at Wellington Security Products
Usually ready in 2-4 days
Larger project or need it installed? Send us your measurements or site plan and we'll quote.
868 Heavy Duty Twin Wire Welded Mesh Fencing Bay
868 Heavy Duty Twin Wire Welded Mesh Fencing Bay - Clip / 1830 MM / Dig In is backordered and will ship as soon as it is back in stock.
Complete the fence line
Matching mesh gates
Add a gate in the same mesh and colour as your fence.
- Single gates: 1.0 or 1.2 m wide, for people
- Double gates: 3.0 to 4.0 m wide, for vehicles
- Sliding gates: WSP cantilever gates with mesh infill, 4 to 12 m
Posts, hinges, lock and handles included. Tell us what you've ordered and we'll quote the gate to match.

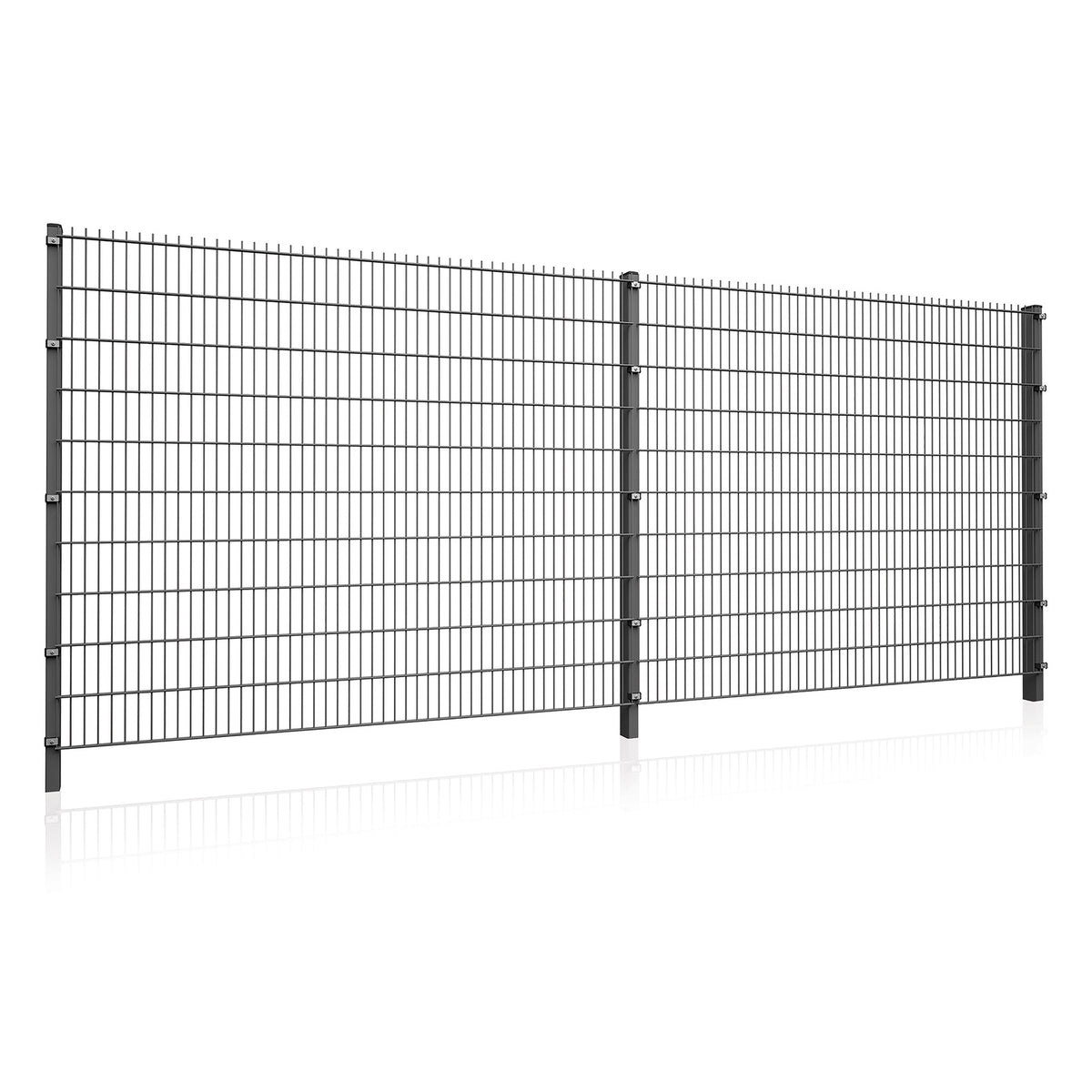

A complete 868 heavy duty twin wire welded mesh fencing bay: one panel, one post and the fixings to join them. Thicker wire than standard 656 mesh, so the panels are stiffer and harder to cut or bend. A good fit for industrial sites, storage yards, utilities, schools and anywhere that needs a stronger perimeter.
Key features
- 868 heavy duty construction: double 8 mm horizontal wires clamp each 6 mm vertical wire, giving a very rigid, flat panel
- Narrow 50 × 200 mm aperture: no easy footholds
- Corrosion protection: galvanised and polyester powder coated
- Your choice of fixing type: Clip or Clamp Bar (see below)
- Part of a complete system: matches our mesh gates and access control
Choosing a fixing type
| Clip | 60 × 40 mm post with a plastic cap and factory-fitted hooks that the panel sits on. The panel is then secured with a stainless steel screw and clamping plate. Quick to install, and corner posts are available. |
|---|---|
| Clamp Bar | 60 × 40 mm post with a plastic hook for every row of horizontal wires, locked in with stainless screws and a flat bar that runs the height of the post. The most secure fixing, and the panels are held along their full height. |
Specification
| Panel | 868 heavy duty twin wire welded mesh, flat, no embossing |
|---|---|
| Wire diameter | 8 mm double horizontal, 6 mm single vertical |
| Aperture | 50 × 200 mm |
| Panel width | 2500 mm |
| Panel heights | 1830, 2030, 2430 mm |
| Posts | 60 × 40 mm steel section, galvanised and polyester coated |
| Price is per | Bay (1 panel + 1 post + fixings) |
How much do I need?
Use the calculator on this page: enter your fence length to see how many bays you need. Add one extra post to finish the run, plus extras for corners. Send us a site plan for a full materials schedule.
Security fencing guide · Matching mesh gates · Request a quote
